Product code: ESNCSNV

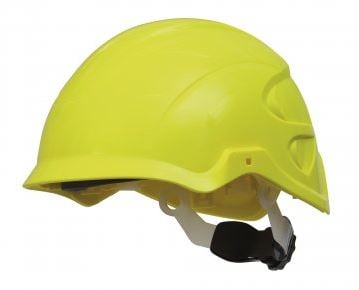

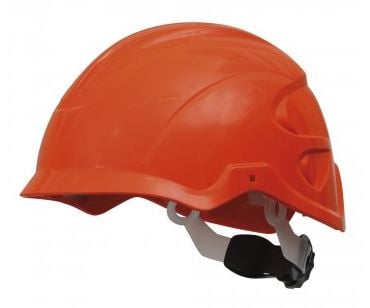

Industry Nexus SecurePlus Helmet Protection System
Weight: 415g
Material: Shell: ABS
Peak Type: Micro Peak - 20mm
Internal Features: 6-point sewn durable and hardwearing Terylene webbing cradle, complete with Dry-Tech sweatband
Reflective sticker kits available - not fitted as standard
Complete with fully removable and adjustable EN 397 or 4-point chinstrap
For people looking for an alternative to Petzl Helmet
Available in White, Red, Grey, Hi Vis Yellow and Hi Vis Orange
Tested + Approved To
AS/NZS1801:1997 Type 1
EN397:2012 + A1:2002 (Lateral Deformation, Molten Metal, 1000V A.C.)
EN50365:2002 (1000V A.C.)
ANSI/ISEA Z89.1-2014 Class E (20,000V A.C.)
CSA/CAN Z94.1-05 Type 1 Class E (20,000V A.C.)
Suitable For;
Outdoor work
Forestry industry
Construction
Electrical Work
Sold Individually
Click Here for the Fact Sheet on NFPA70E
What is Arc Flash Clothing?
A typical work day for many electrical workers involves hazardous tasks and a high risk of electrical shock and injury. From repairing broken wires to working on electrical lines, electrical workers must wear the proper protective equipment and arc flash clothing to stay safe should an arc flash explosion occur.
What is Arc Rated?
The Difference Between Arc Rated (AR) and Flame Resistant (FR) ... The letters “AR” stand for Arc Rated, and made their debut in the recent revision of NFPA 70E; the short explanation of the difference is that ALL AR clothing is flame resistant (FR), but not all FR clothing has been Arc Rated.
What does HRC2 mean?
Garments compliant to HRC (Hazard Risk Category) 2, as defined by NFPA 70E, 2012 edition, have an arc rating that is greater than or equal to 8 cal/cm², but is less than 25 cal/cm². HRC 2 may also be called Level 2.
What is an Electric Arc Flash?
An arc flash (also called a flashover), which is distinctly different from the arc blast, is part of an arc fault, a type of electrical explosion or discharge that results from a low-impedance connection through air to ground or another voltage phase in an electrical system.
What is the ATPV rating?
ASTM Standard Definitions: ATPV (Arc Thermal Performance Value) is the incident energy on a material that results in a 50% probability that sufficient heat transfer through the specimen is predicted to cause the onset of second-degree burn injury based on the Stoll Curve, cal/cm²
