Insulated Mats and Blankets

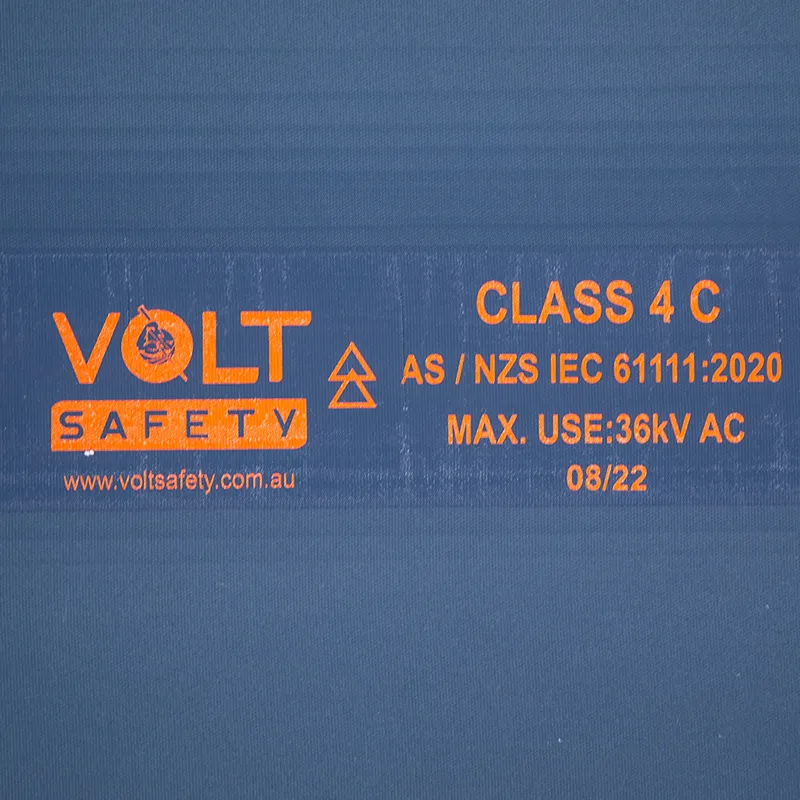

Insulated Mat Class 4 (36kV) - AS/NZS IEC 61111 – Volt Safety
Product code: MAT-4

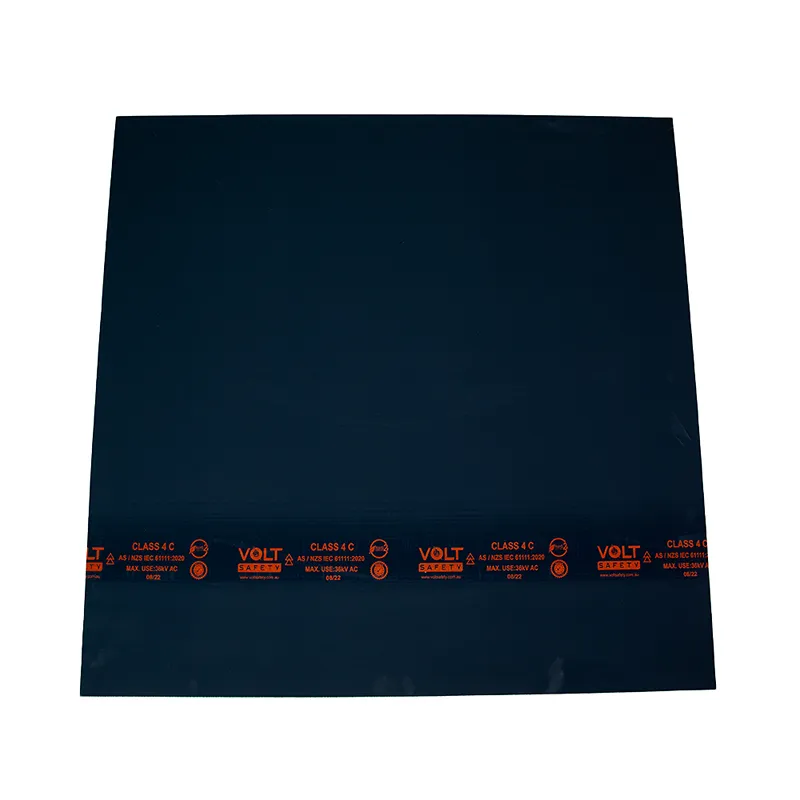

Volt Safety’s Insulated Mat Class 4 36kV isolates the operator from the ground and protects the worker from ground potential. This Insulated Mat Class 4 comes as a 1m x 1m square with a 5mm thickness.
Key Features:
- Size: 1m x 1m
- Class: Class 4
- Maximum Use Voltage AC: 36,000V AC Voltage
- Maximum Use Voltage DC: 54,000V DC Voltage
- Thickness: 5mm
- Weight: 7.4kg per meter
- Colour: Grey
- Custom size up to 1m x 10m on request
- Manufactured with EPDM rubber to ensure flexibility and protection against ozone cracking
- Anti-slip finish on both sides
Standards:
- AS/NZS IEC 61111
- C – Resistant to extremely low temperatures
Additional Options:
- Mat Roll-Up Style Bag for Insulated Mats
- Mat Roll-up bags protect your mat from damage and extend the lifetime usability of your insulated mat.
- 1m x 10m Mat Roll or Custom sizing Mat
- Order a custom size to fit your circumstance or get an entire 10m roll to use.
